Customizing the SproutCore TreeController with a custom icon for leaf nodes

posted 27 Jan 2011 by Joachim Haagen Skeie

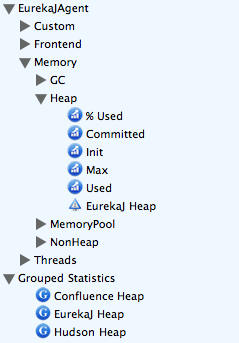

In the SproutCore client I wanted to display a customized icon for the leaf nodes, depending on the type of node. Each node has a "nodeType" parameter that can either be "chart", "alert" og "groupedStatistic", and I wanted to display a custom icon for each of the different nodes like this:

As you can see from the image above, the chart nodes have a image of a chart, the alert node of a warning triangle while the Grouped Statistics node has an icon with a "G" in it.

Calculated property on the model

The first thing I needed to do was to add a calculated property on the model object for the treenode, which I called "itemIcon". This property would return the correct image if the node has no children (is a leaf node), based on the model property "nodeType". If the node is either not a leaf node, or has the correct nodeType, the function return null, telling SproutCore that no icon will be necessary for this particular node. Following is the full data-model for the tree items:

EurekaJView.InstrumentationTreeModel = SC.Record.extend(
/** @scope EurekaJView.InstrumentationTreeModel.prototype */
{

    primaryKey: 'guiPath',
    guiPath: SC.Record.attr(String),

    name: SC.Record.attr(String),
    isSelected: SC.Record.attr(Boolean),
    parentPath: SC.Record.attr(String),
    hasChildren: SC.Record.attr(Boolean),
    treeItemIsExpanded: NO,
    childrenNodes: SC.Record.toMany('EurekaJView.InstrumentationTreeModel'),
	chartGrid: SC.Record.toMany('EurekaJView.ChartGridModel'),
    nodeType: SC.Record.attr(String),

    treeItemChildren: function() {
        if (this.get('childrenNodes').toArray().length === 0) {
            return null;
        } else {
            return this.get('childrenNodes');
        }
    }.property(),

    itemIcon: function() {
        if (!this.get('hasChildren') && SC.compare(this.get('nodeType'), "chart") == 0) {
            return static_url('images/ej_chart_16.png');
        } else if (!this.get('hasChildren') && SC.compare(this.get('nodeType'), "alert") == 0) {
            return static_url('images/ej_chart_alert_16.png');
        } else if (!this.get('hasChildren') && SC.compare(this.get('nodeType'), "groupedStatistics") == 0) {
            return static_url('images/ej_groupedstats_16.png');
        } else {
            return null;
        }
    }.property()


});

The images, as the code suggest is placed inside /resources/images and named accordingly.

Making the view show the icon

The view in question is a SC.ListView, an in order to customize the way each row is shown, it is necessary to define an exampleView for the list like so:

instrumentationTreeScrollView: SC.ScrollView.extend({
            isVisible: NO,
            layout: {
                top: 101,
                bottom: 0,
                left: 2,
                width: 299
            },
            canScrollHorizontally: YES,
            hasHorizontalScroller: YES,

            contentView: SC.ListView.extend({
                backgroundColor: '#F0F8FF',
                contentValueKey: "name",
                rowHeight: 18,
                borderStyle: SC.BORDER_NONE,

                contentBinding: 'EurekaJView.InstrumentationTreeController.arrangedObjects',

                selectionBinding: 'EurekaJView.InstrumentationTreeController.selection',
                selectionDelegate: EurekaJView.treeMenuSelectionDelegate,

                exampleView: EurekaJView.InstrumentationTreeListItem,
                recordType: EurekaJView.InstrumentationTreeModel
            }),

            borderStyle: SC.BORDER_NONE
        })

The last missing piece is the implementation of EurekaJView.InstrumentationTreeListItem. As this class extends the SC.ListItemView the implementation is rather simple with only a single binding to the "itemIcon" calculated property from above:

EurekaJView.InstrumentationTreeListItem = SC.ListItemView.extend(
    /** @scope EurekaJView.InstrumentationTreeListItem.prototype */ {

    iconBinding: '.content.itemIcon'

});
